Multiple Subplots
In the case of having multiple subplots, you can initialize one of the mw-plot class instances to utilize transform()
method to
transform one or more subplots.
Tranform a single subplot
1import pylab as plt
2from mw_plot import MWPlot
3from astropy import units as u
4
5# setup a mw-plot instance of bird's eyes view of the disc
6mw1 = MWPlot(radius=20 * u.kpc, center=(0, 0)*u.kpc, unit=u.kpc, coord='galactocentric', rot90=2, grayscale=False, annotation=False)
7
8# setup subplots with matplotlib
9fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 7.5))
10
11# transform the second subplot with mw-plot
12mw1.transform(ax2)
13
14# you can plot something on top of the transformed subplot
15ax2.scatter(8, 0, c='r', s=100)
16
17# plot something in the first subplot
18ax1.plot([0, 1], [0, 1])
19ax1.plot([0, 1], [1, 0])
(Source code
, png
, pdf
)

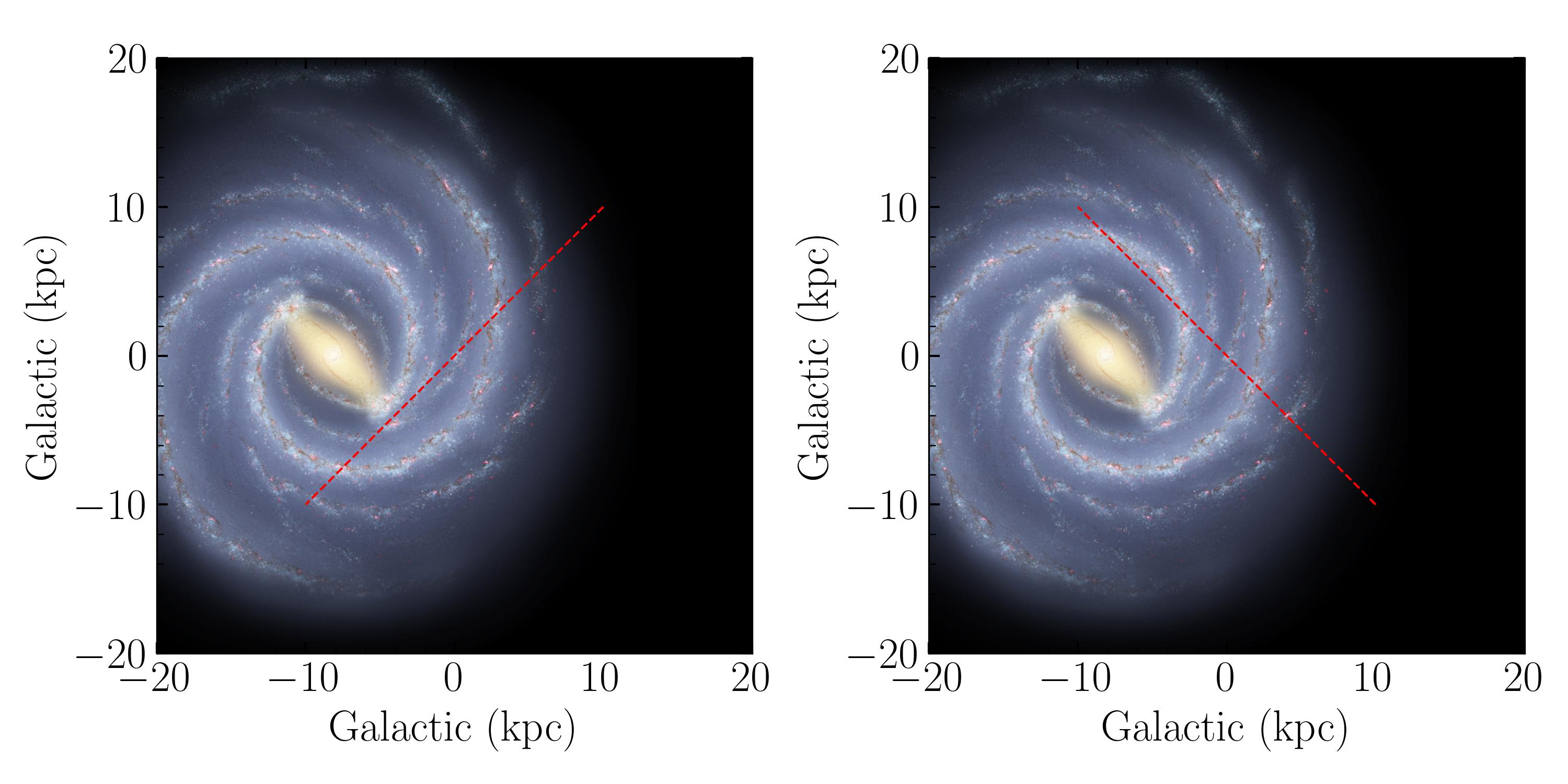

Tranform multiple subplots
1import pylab as plt
2from mw_plot import MWPlot
3from astropy import units as u
4
5# setup a mw-plot instance of bird's eyes view of the disc
6mw1 = MWPlot(radius=20 * u.kpc, center=(0, 0)*u.kpc, unit=u.kpc, coord='galactocentric', rot90=2, grayscale=False, annotation=False)
7
8# setup subplots with matplotlib
9fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 7.5))
10
11# transform the whole figure with mw-plot
12# mw1.transform(fig) will have the same effect
13mw1.transform([ax1, ax2])
14
15# you can plot something on top of the transformed subplot
16ax2.scatter(8, 0, c='r', s=100)
17
18# plot something in the first subplot
19ax1.plot([20, -20], [20, -20])
20ax1.plot([20, -20], [-20, 20])
(Source code
, png
, pdf
)
Tranform subplots with different style
Not only you can transform with one style, you can do multiple style too
1import pylab as plt
2from mw_plot import MWPlot, MWSkyMap
3from astropy import units as u
4
5# setup a mw-plot instance of bird's eyes view of the disc
6mw1 = MWPlot(radius=20 * u.kpc, center=(0, 0)*u.kpc, unit=u.kpc, coord='galactocentric', rot90=2, grayscale=False, annotation=False)
7mw2 = MWPlot(radius=20 * u.kpc, center=(0, 0)*u.kpc, unit=u.kpc, coord='galactocentric', rot90=2, grayscale=True, annotation=False)
8mw3 = MWSkyMap()
9
10# setup subplots with matplotlib
11fig = plt.figure(figsize=(15, 15))
12ax1 = fig.add_subplot(221)
13ax2 = fig.add_subplot(222)
14ax3 = fig.add_subplot(212)
15
16# transform the subplots with different style
17mw1.transform(ax1)
18mw2.transform(ax2)
19mw3.transform(ax3)
20
21fig.tight_layout()
(Source code
, png
, pdf
)
Tranform all subplots
You can quickly transform all subplots in a figure
1import pylab as plt
2from mw_plot import MWPlot
3from astropy import units as u
4
5# setup a mw-plot instance of bird's eyes view of the disc
6mw1 = MWPlot(radius=20 * u.kpc, center=(0, 0)*u.kpc, unit=u.kpc, coord='galactocentric', grayscale=False, annotation=False)
7
8# setup subplots with matplotlib
9fig, (ax_top, ax_bottom) = plt.subplots(2, 4, figsize=(20, 10))
10
11# transform the whole figure with mw-plot
12# mw1.transform([ax1, ax2]) will have the same effect
13mw1.transform(fig)
(Source code
, png
, pdf
)
